Product Description

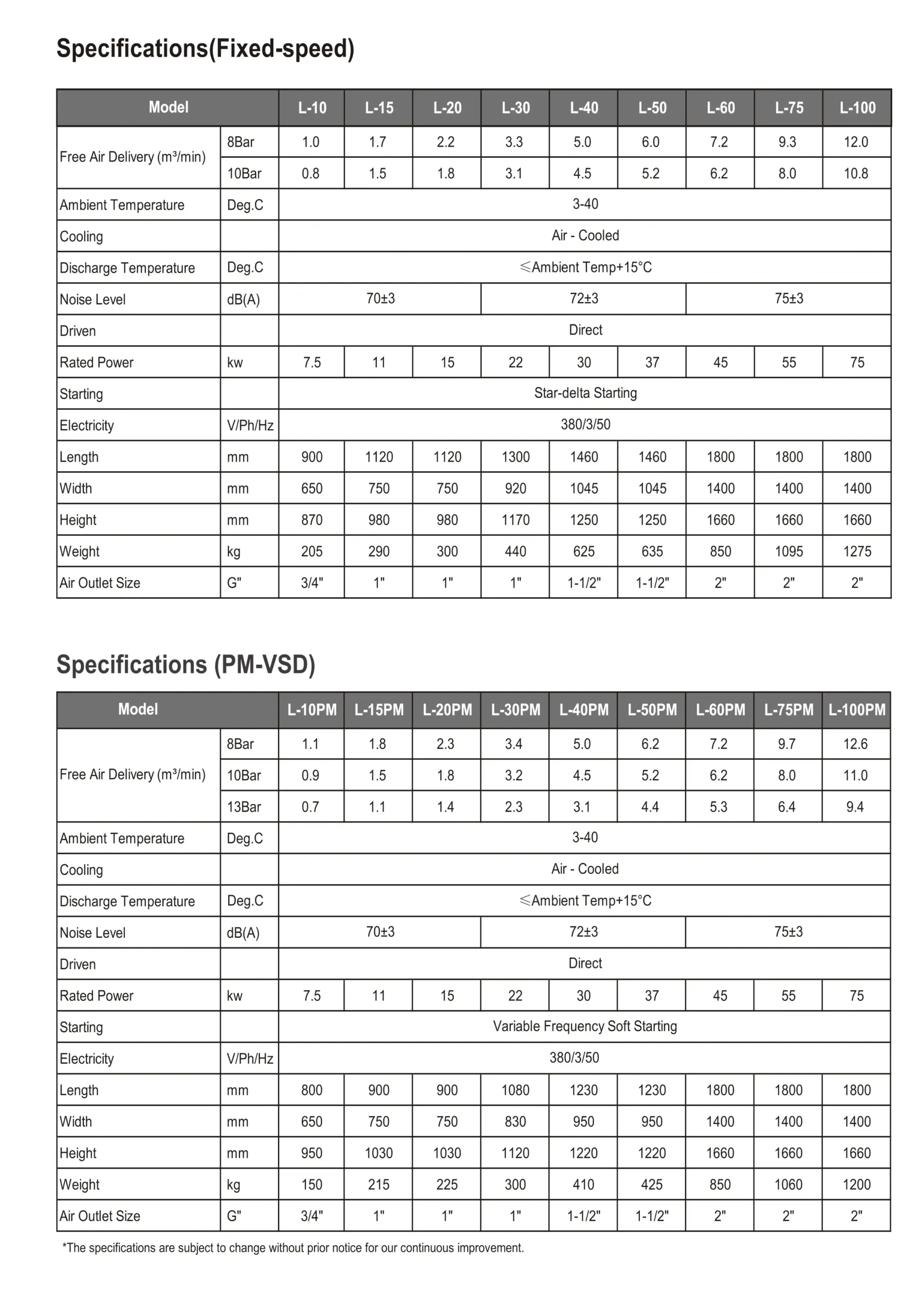

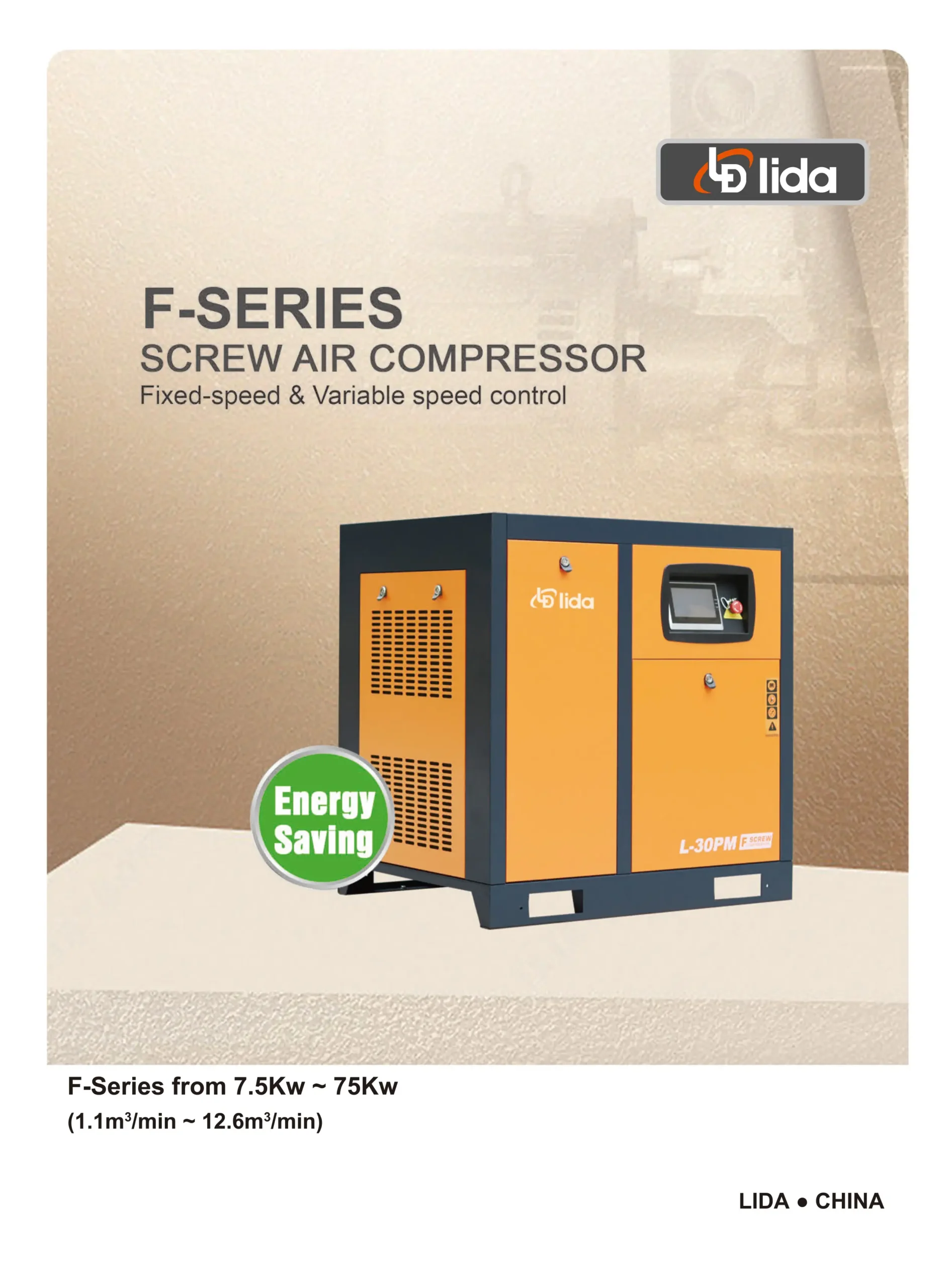

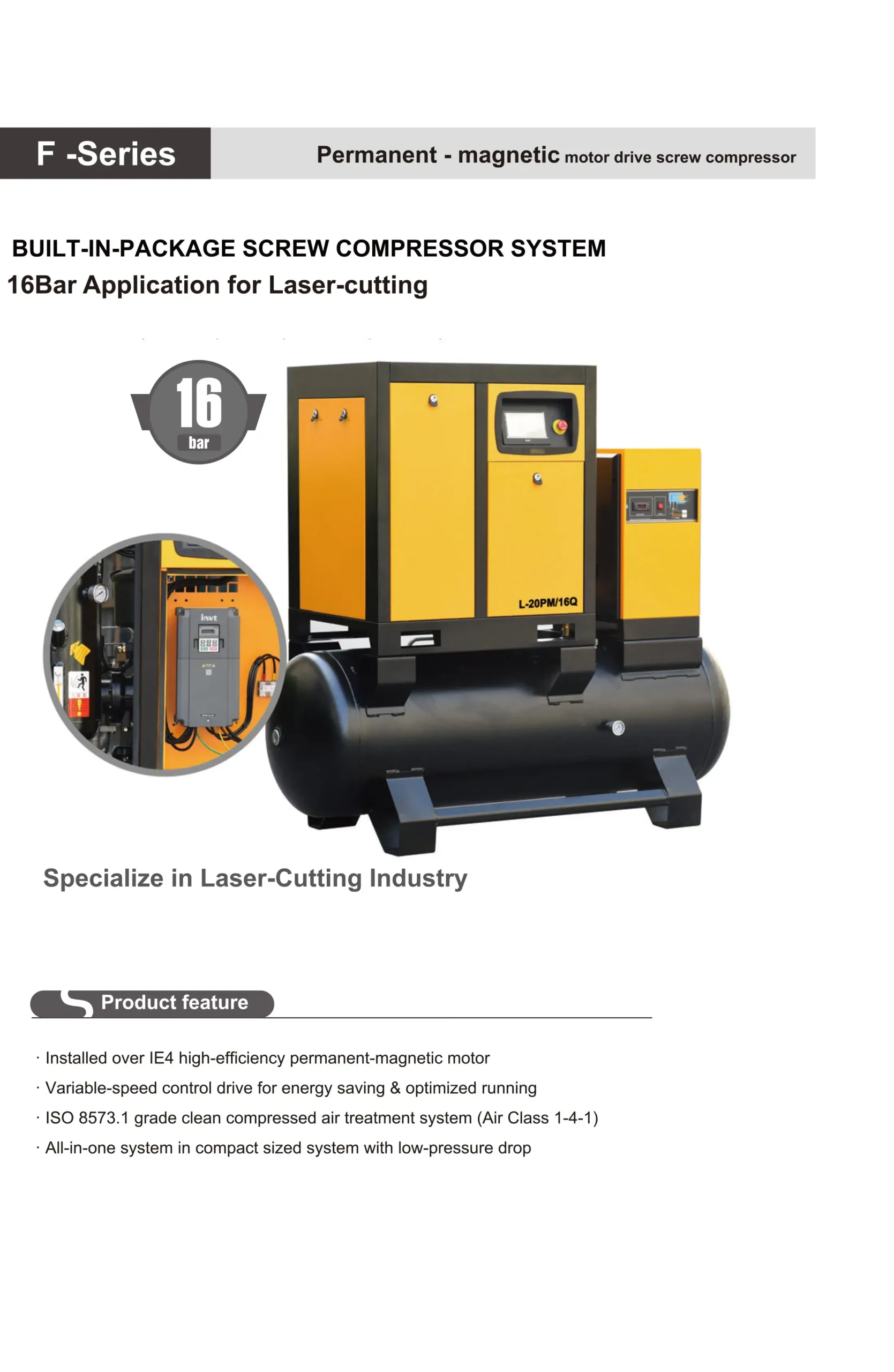

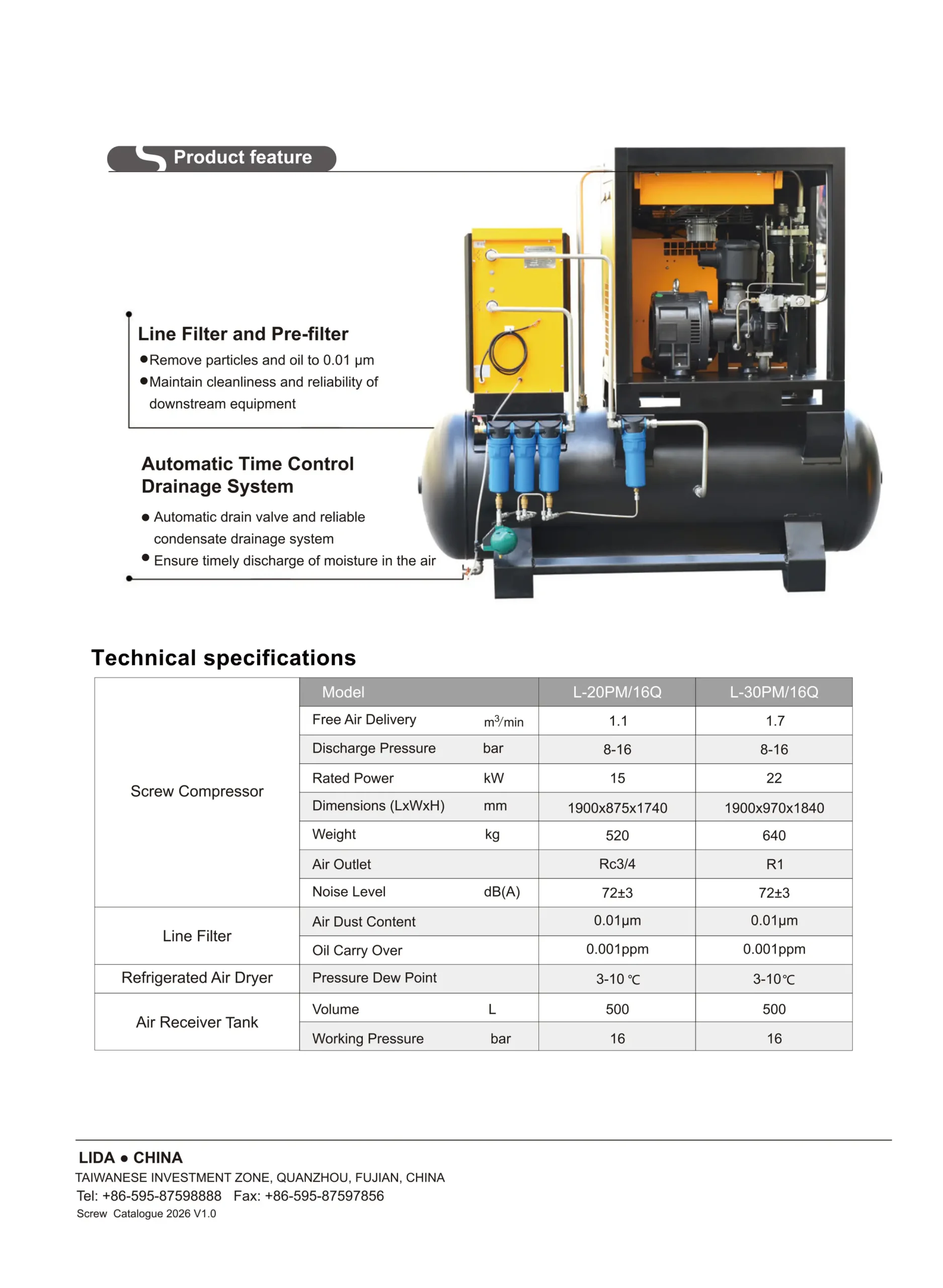

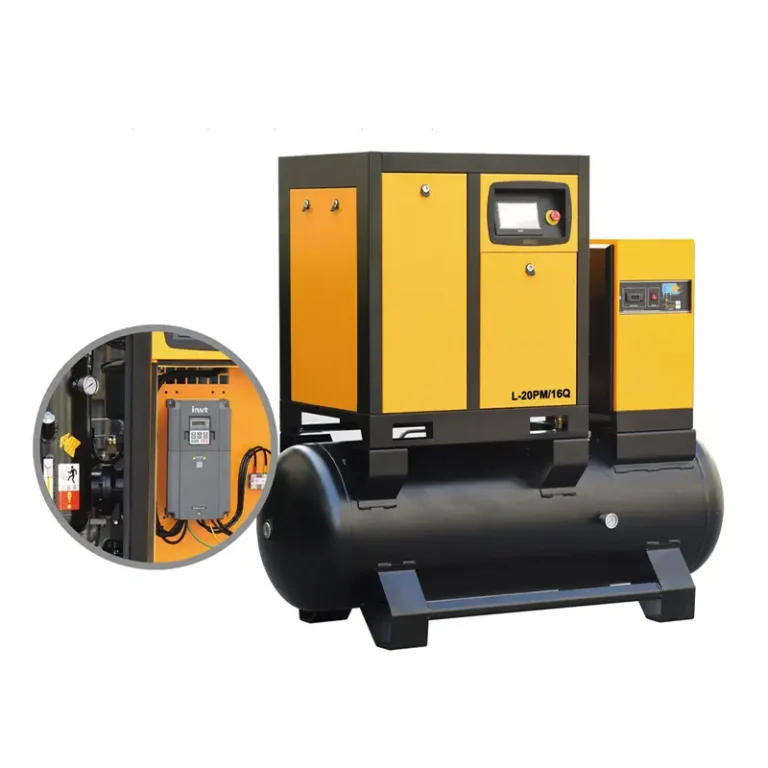

F Series covers fixed-speed and PM-VSD variable speed screw compressors with power ranging from 7.5kW to 75kW. The 16bar all-in-one integrated version is customized for laser cutting industry, equipped with full air purification system to deliver ISO 1-4-1 ultra-clean air. PM-VSD models adopt IE4 high-efficiency permanent magnet motors, cutting power consumption by 15%–45% compared with fixed-speed units.

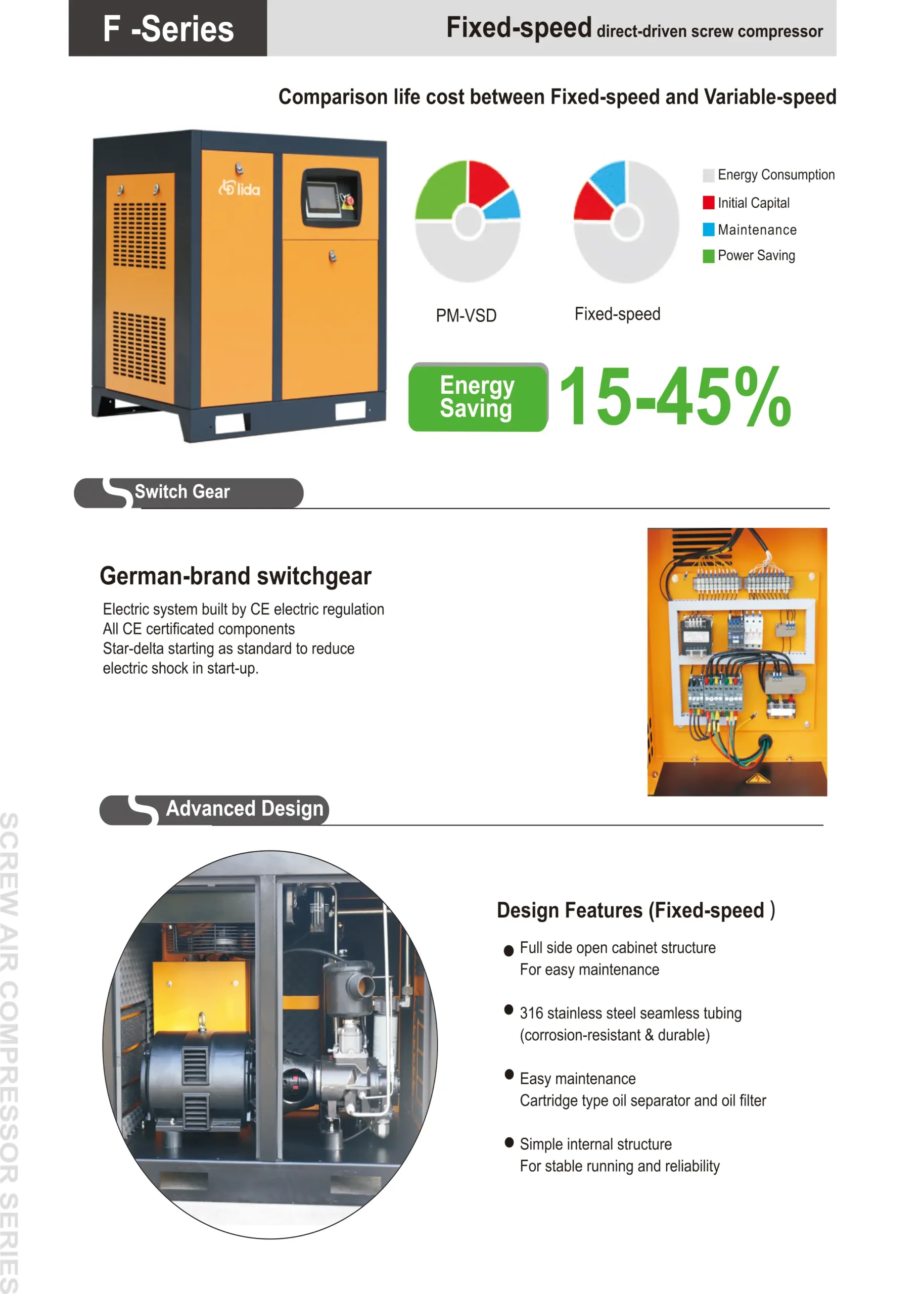

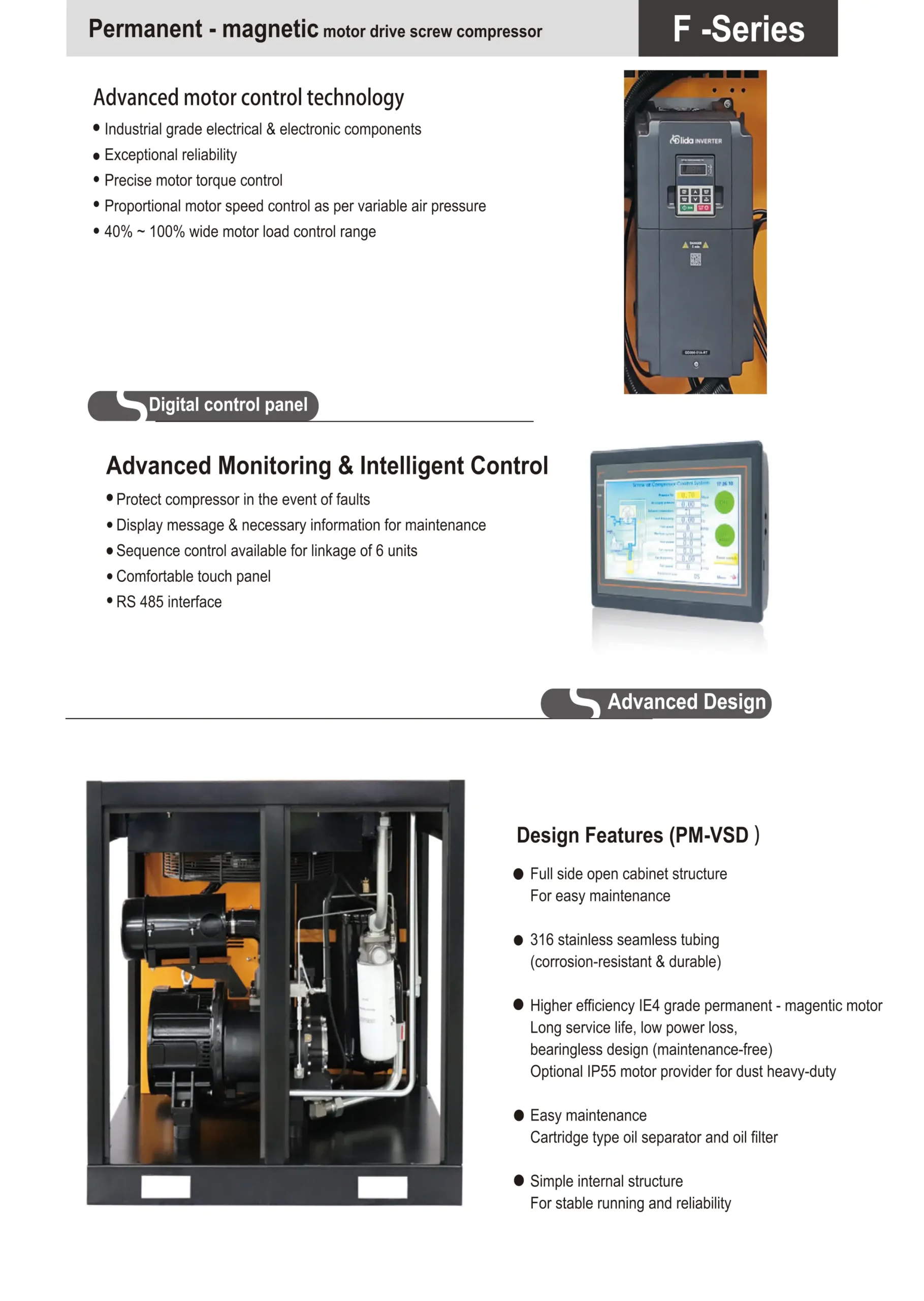

Design Features

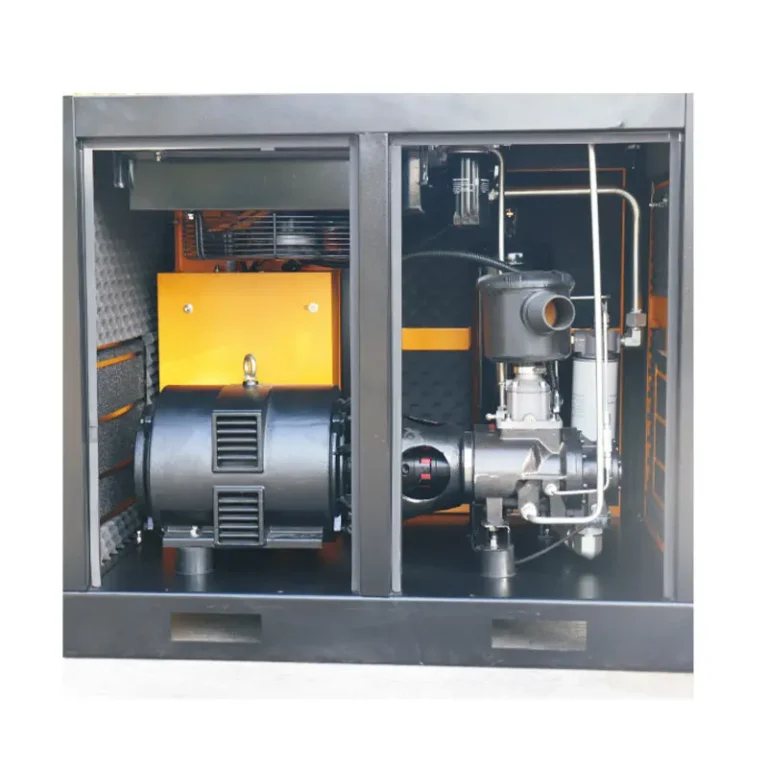

Full side-open cabinet design for convenient maintenance access
Corrosion-resistant 316 stainless steel seamless tubing
Spin-on cartridge oil separator & filter for fast replacement
PM-VSD version supports 40%~100% wide load adjustment, digital panel with multi-unit linkage control

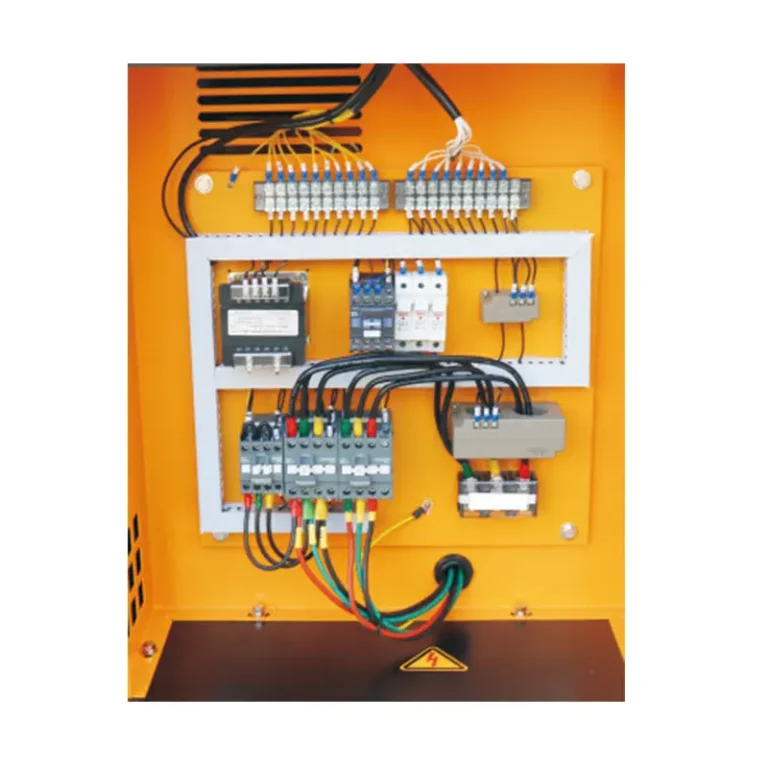

German CE-certified electrical components with soft start function
